13 inch trailer wheels rim

13 inch trailer wheels rim

4x139.7 trailer wheels rim

5.50JX13H2 4-139.7 STEEL WHEEL RIM FOR EUROPEAN TRAILER USE

5.50JX13H2 4-139.7-95.25 ET26

Rim size: 5.50Jx13H2
ET: 26
Centre hole diameter: 95.25
PCD: 139.7

minimum order

200

Quantity

Contact Now

13 INCH CUSTOM TRAILER WHEELS - SPECIFICATIONS

Product name: 13 Inch trailer wheels rim
Application: Car Trailer
Rim size: 5.50Jx13H2
Offset: 26
Centre hole diameter: 95.25
PCD: 4x139.7 Trailer wheels rim
Stud hole: 4-14.5-C60
Wheel Nut: M12X1.5 With conical shape 60°
Recommended tyre size: 195/50R13C
Design load capacity: 900KGS@140KM/H

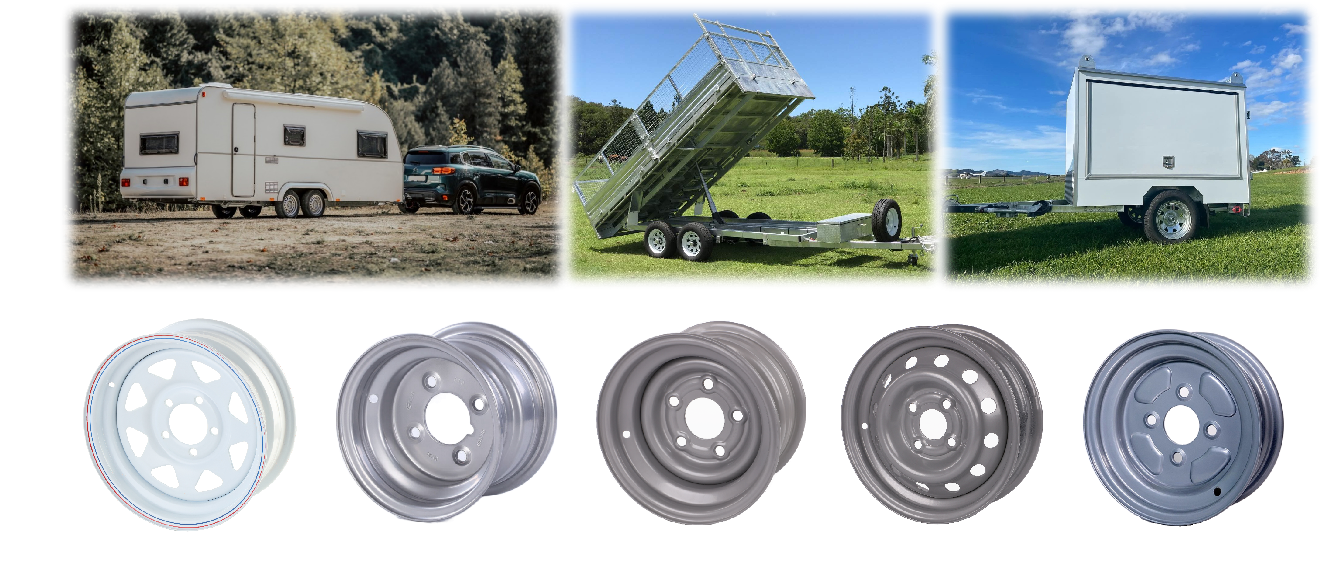

steel trailer wheel

OTHER WHEEL SPECIFICATIONS

RIM DIAMETER	WHEEL SIZE	RECOMMENDED TYRE SIZE	STUD HOLE	CENTRE HOLE DIAMETER（MM）	PCD (MM)	OFFSET(MM)	DESIGN LOAD CAPACITY
13"	4.00JX13	145/70R13 145/80R13 155/70R13 155/80R13 165/70R13	4	58.5	98	30	500KGS@140KM/H
			4	57/60	100	30	500KGS@140KM/H
			5	66.5	112	30	500KGS@140KM/H
			4	85	115	0	500KGS@140KM/H
			4	85	130	0/20	500KGS@140KM/H
	4.50JX13	155R13 165R13 165/70R13 165/80R13 175/70R13 185/70R13	4	58.5	98	30	675KGS@140KM/H
			4	57/60.5	100	30	675KGS@140KM/H
			5	66.5	112	30	675KGS@140KM/H
			4	85	130	0/20	675KGS@140KM/H
			4	95.25	139.7	26	675KGS@140KM/H
			5	94	140	30	675KGS@140KM/H
	5.00JX13	175R13 185R13 175/70R13 185/70R13	4	58.5	98	30	750KGS@140KM/H
			4	57	100	30	750KGS@140KM/H
			5	66.5	112	30	750KGS@140KM/H
			4	85	130	0/20	750KGS@140KM/H
			5	94	140	30	750KGS@140KM/H
	5.50JX13	195/50R13C	4	58.5	98	30	900KGS@140KM/H
			4	57	100	30	900KGS@140KM/H
			5	66.5	112	30	900KGS@140KM/H
			4	85	130	0/20	900KGS@140KM/H
			4	95.25	139.7	32	900KGS@140KM/H
			5	94	140	30	900KGS@140KM/H
			5	115	165.1	7	900KGS@140KM/H
	6.00JX13	195/50R13C	4	58.5	98	30	900KGS@140KM/H
			5	66.5	112	30	900KGS@140KM/H
			5	115	165.1	7	900KGS@140KM/H
