4.0JX13 5-112 ET30 ALUMINUM TRAILER WHEEL
4.0JX13 5-112-67.1 ET30
Rim size: 4.0Jx13
ET: 30
Centre hole diameter: 67.1
PCD: 112
ET: 30
Centre hole diameter: 67.1
PCD: 112
minimum order
200
Quantity

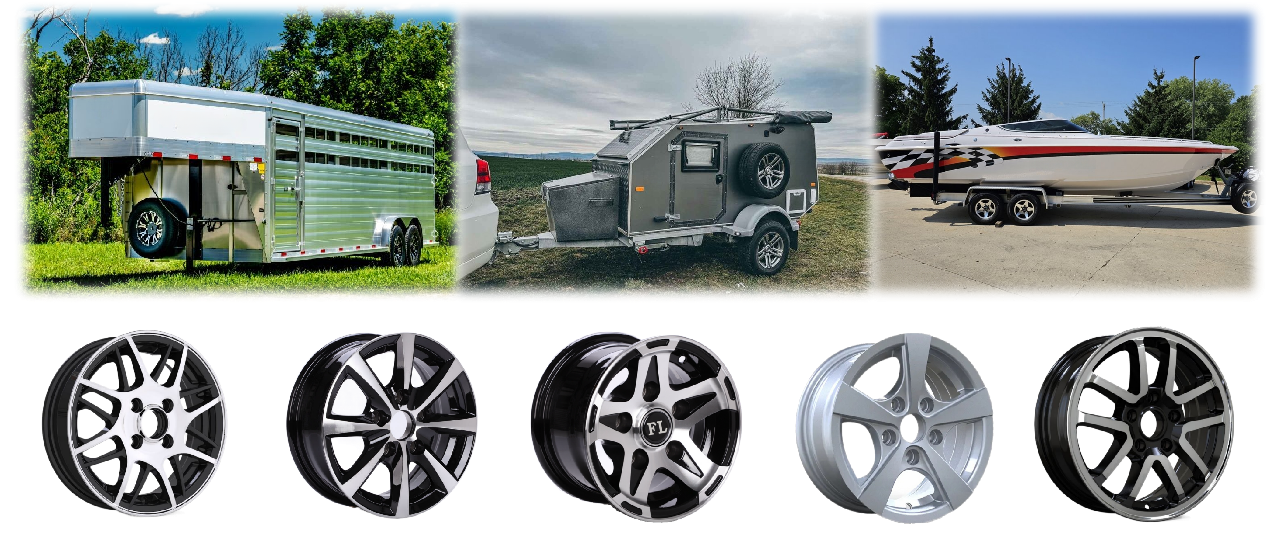

13 INCH 5 STUDS ALUMINUM TRAILER WHEELS - SPECIFICATIONS
- Product name: Camper trailer wheels
- Application: Car / Boat Trailer
- Rim size: 4.0Jx13
- Offset: 30
- Centre hole diameter: 67.1
- PCD: 112(5X112 wheel rim)
- Recommended tyre size: 155/80R13
- Design load capacity: 500KGS@140KM/H
OTHER WHEEL SPECIFICATIONS
| RIM DIAMETER | WHEEL SIZE | RECOMMENDED TYRE SIZE | STUD HOLE | CENTRE HOLE DIAMETER (MM) | PCD (MM) | OFFSET(MM) | DESIGN LOAD CAPACITY |
| 10" | 6.00X10 | 195/55R10C | 5 | 67.1 | 112 | 0/-4 | 750KGS@140KM/H |
| 13" | 4.00JX13 | 155/70R13 | 4 | 57.1 | 100 | 30 | 400KGS@140KM/H |
| 4 | 58.6 | 98 | 30 | 400KGS@140KM/H | |||
| 5 | 67.1 | 112 | 30 | 400KGS@140KM/H | |||
| 4.00JX13 | 155/80R13 | 4 | 57.1 | 100 | 30 | 500KGS@140KM/H | |
| 4 | 58.6 | 98 | 30 | 500KGS@140KM/H | |||
| 5 | 67.1 | 112 | 30 | 500KGS@140KM/H | |||
| 5.00JX13 | 175/70R13 185/70R13 | 4 | 57.1 | 100 | 30 | 500KGS@140KM/H | |
| 4 | 58.6 | 98 | 30 | 500KGS@140KM/H | |||
| 5 | 67.1 | 112 | 30 | 500KGS@140KM/H | |||
| 5.00JX13 | 165R13C | 4 | 57.1 | 100 | 30 | 750KGS@140KM/H | |
| 4 | 58.6 | 98 | 30 | 750KGS@140KM/H | |||
| 5 | 67.1 | 112 | 30 | 750KGS@140KM/H | |||
| 6.00JX13 | 195/50R13C | 5 | 67.1 | 112 | 30 | 900KGS@140KM/H | |
| 14" | 5.50JX14 | 185R14C | 4 | 58.6 | 98 | 30 | 900KGS@140KM/H |
| 4 | 57.1/58.2 | 100 | 30 | 900KGS@140KM/H | |||
| 5 | 67.1 | 112 | 30 | 950KGS@140KM/H | |||
| 6.00JX14 | 205R14 | 4 | 57.1 | 100 | 30 | 700KGS@140KM/H | |
| 5 | 67.1 | 112 | 30 | 700KGS@140KM/H | |||
| 15" | 6.00JX15 | 205/70R15 | 5 | 67.1 | 112 | 30 | 1000KGS@140KM/H |
