boat trailer rims for sale

boat trailer rims for sale

steel trailer rims

3.50X10 trailer rims

3.50X10 4-100 STEEL WHEEL RIM FOR EUROPEAN TRAILER USE

3.50X10 4-100-60 ET0

Rim size: 3.50x10
ET: 0
Centre hole diameter: 60
PCD: 100

minimum order

200

Quantity

Contact Now

10 INCH STEEL TRAILER RIMS - SPECIFICATIONS

Product name: Boat trailer rims for sale,3.50X10 Trailer rims
Application: Car Trailer
Rim size: 3.50x10
Offset: 0
Centre hole diameter: 60
PCD: 100
Stud hole: 4-14.5-60°
Wheel Nut: M12X1.5 With conical shape 60°
Recommended tyre size: 4.50-10 5.00-10 145R10 145/80R10
Design load capacity: 375KGS@100KM/H

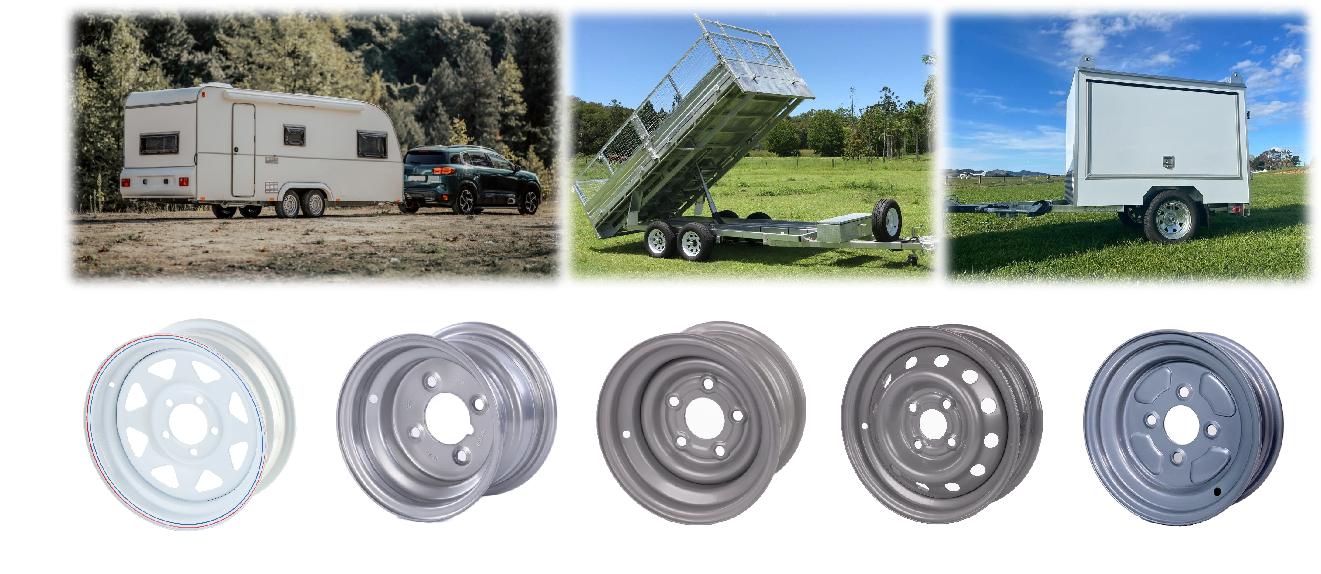

wholesale trailer wheel

OTHER WHEEL SPECIFICATIONS

RIM DIAMETER	WHEEL SIZE	RECOMMENDED TYRE SIZE	STUD HOLE	CENTRE HOLE DIAMETER（MM）	PCD (MM)	OFFSET(MM)	DESIGN LOAD CAPACITY
10"	3.50X10	4.50-10 5.00-10 145R10 145/80R10	4	62.5	95	0	375KGS@100KM/H
			4	58.5	98	0	375KGS@100KM/H
			4	60	100	0	375KGS@100KM/H
			4	66.7	101.6	0	375KGS@100KM/H
			4	85	115	0	375KGS@100KM/H
			4	95.25	139.7	0/-6	500KGS@100KM/H
	6.00X10	195/55R10C 20.5X8.0-10	4	58.5	98	0/-4	750KGS@140KM/H
			4	60	100	0/-4	750KGS@140KM/H
			4	66.7	101.6	0/-4	750KGS@140KM/H
			5	66.5	112	0/-4/25	750KGS@140KM/H
			4	85	130	0/-4	750KGS@140KM/H
			5	94	140	0/-4	750KGS@140KM/H
12"	4.00JX12	155/70R12	4	65	101.6	0	500KGS@140KM/H
	4.00JX12	155/70R12	4	72	101.6	0	500KGS@140KM/H
	4.50JX12	155/70R12C	4	58.5	98	30	900KGS@140KM/H
			5	66.5	112	0/20/30	900KGS@140KM/H
			4	85	130	0	650KGS@140KM/H
			5	94	140	0/30	900KGS@140KM/H
			5	115	165.1	0	900KGS@140KM/H
	5.50JX12	185/60R12C 195/60R12C	5	66.5	112	5/30	900KGS@140KM/H
			5	94	140	0/30	900KGS@140KM/H
			5	115	165.1	0	900KGS@140KM/H
	6.00JX12	195/60R12C	5	66.5	112	30	900KGS@140KM/H
	6.00JX12	195/60R12C	5	115	165.1	0	900KGS@140KM/H
	7.00X12	225/55R12C	5	67	112	10	1120KGS@140KM/H
