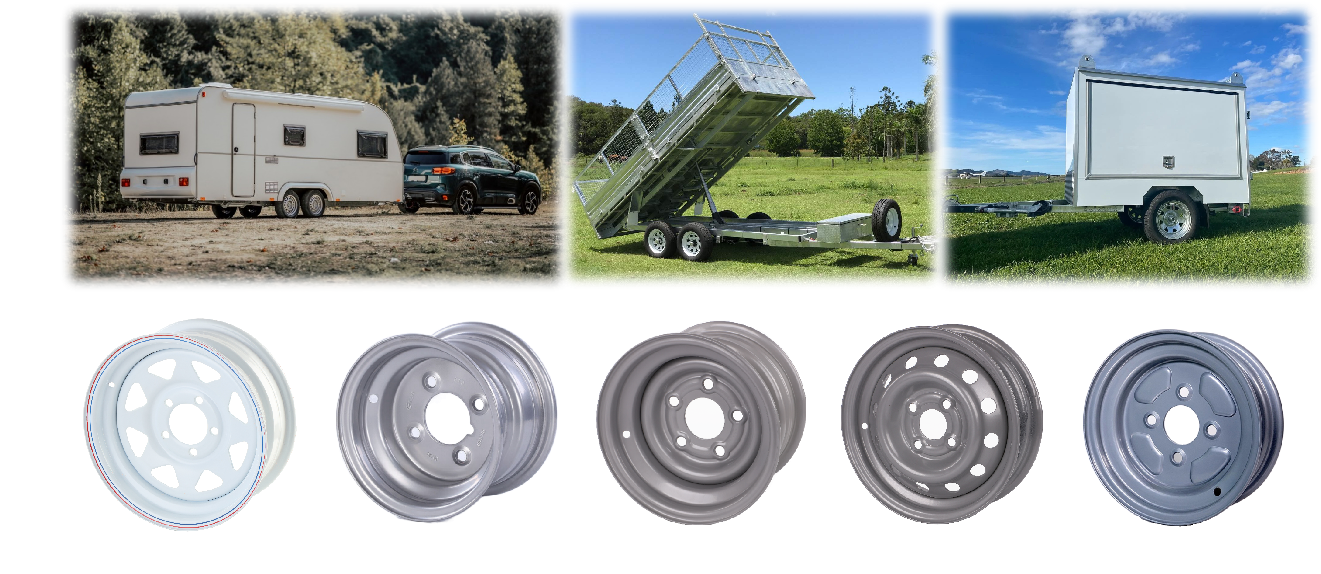

2.50X8H2 4-100 STEEL WHEEL RIM FOR EUROPEAN TRAILER USE
2.50X8H2 4-60-100 ET0
Rim size: 2.50x8H2
ET: 0
Centre hole diameter: 60
PCD: 100
ET: 0
Centre hole diameter: 60
PCD: 100
minimum order
200
Quantity
8 INCH TRAILER RIMS - SPECIFICATIONS
- Product name: Car trailer wheel rims, Trailer house wheels for sale
- Application: Car Trailer
- Rim size: 2.50x8H2
- Offset: 0
- Centre hole diameter: 60
- PCD: 100
- Stud hole: 4-14.5-60°
- Wheel Nut: M12X1.5 With conical shape 60°
- Recommended tyre size: 4.80/4.00-8
- Load carrying capacity: 300KGS@100KM/H
OTHER WHEEL SPECIFICATIONS
| RIM DIAMETER | WHEEL SIZE | RECOMMENDED TYRE SIZE | STUD HOLE | CENTRE HOLE DIAMETER（MM） | PCD (MM) | OFFSET(MM) | DESIGN LOAD CAPACITY |
| 8" | 2.50X8 | 4.80/4.00-8 | 4 | 62.5 | 95 | 0 | 275KGS@100KM/H |
| 4 | 58.5 | 98 | 0 | 275KGS@100KM/H | |||
| 4 | 60 | 100 | 0 | 275KGS@100KM/H | |||
| 4 | 66.7 | 101.6 | 0 | 275KGS@100KM/H | |||
| 4 | 85 | 115 | 0 | 275KGS@100KM/H | |||
| 3.00X8 | 4.80/4.00-8 5.00-8 | 4 | 60 | 100 | 0 | 345KGS@100KM/H | |
| 4 | 66.7 | 101.6 | 0 | 345KGS@100KM/H | |||
| 4 | 85 | 115 | 0 | 345KGS@100KM/H | |||
| 5.50X8 | 16.5X6.50-8 | 4 | 62.5 | 95 | 0 | 350KGS@100KM/H | |
| 4 | 58.5 | 98 | 0 | 350KGS@100KM/H | |||
| 4 | 60 | 100 | 0 | 350KGS@100KM/H | |||
| 4 | 66.7 | 101.6 | 0 | 350KGS@100KM/H | |||
| 4 | 85 | 115 | 0 | 350KGS@100KM/H | |||
| 7.00X8 | 18.5X8.50-8 | 4 | 62.5 | 95 | 0 | 425KGS@100KM/H | |
| 4 | 58.5 | 98 | 0 | 425KGS@100KM/H | |||
| 4 | 60 | 100 | 0 | 425KGS@100KM/H | |||
| 4 | 66.7 | 101.6 | 0 | 425KGS@100KM/H | |||
| 4 | 85 | 115 | 0 | 425KGS@100KM/H | |||
| 8.00X8 | 20X10.00-8 | 4 | 60 | 100 | 0 | 450KGS@100KM/H | |
| 4 | 66.7 | 101.6 | 0 | 450KGS@100KM/H | |||
| 9.00X8 | 20X10.00-8 | 4 | 60 | 100 | 0 | 450KGS@100KM/H | |
| 4 | 66.7 | 101.6 | 0 | 450KGS@100KM/H |
