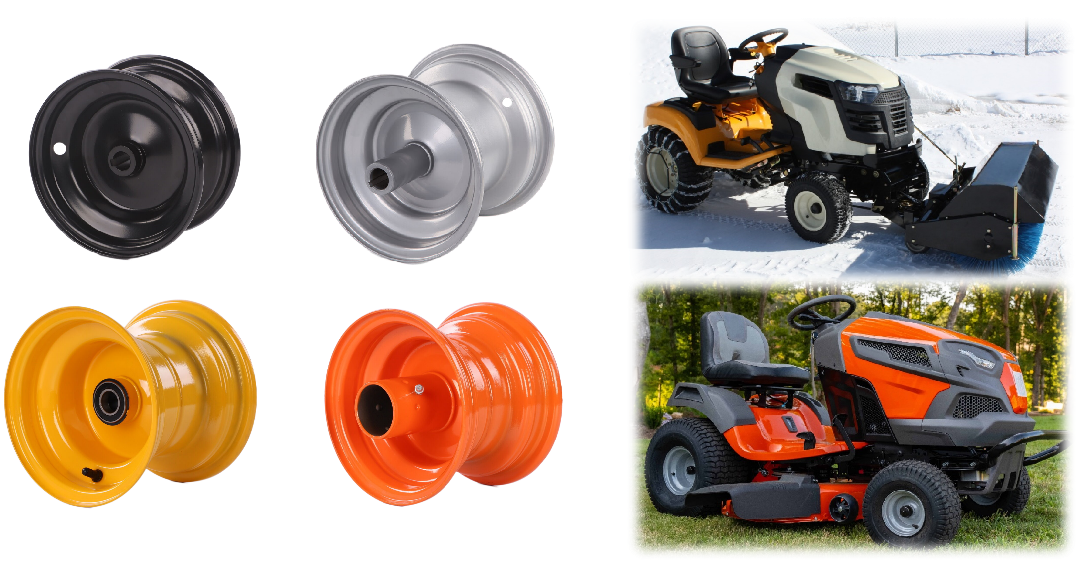

1.575X4 L52 LAWN MOWER WHEEL WITH BEARING
1.575X4 L52
Rim size: 1.575x4
Hub Length: 52
Center OD: φ45
Center ID: φ42
Thickness: 1.8
Hub Length: 52
Center OD: φ45
Center ID: φ42
Thickness: 1.8
minimum order
200
Quantity
4 INCH LAWN MOWER & SNOWBLOWER RIMS WITH BEARING - SPECIFICATIONS
- Rim size: 1.575x4
- PCD: 73
- Hub Length: 52
- Center OD: φ45
- Center ID: φ42
- Stud hole: 4-φ84
- Thickness: 1.8 mm
OTHER WHEEL SPECIFICATIONS
| RIM DIAMETER | WHEEL SIZE | RECOMMENDED TYRE SIZE | (H) FITTING LENGTH / LENGTH OF AXIS TUBE (CUSTOMIZE) | BORE DIA.(MM) | BEARING |
| 4" | 2.10X4 | 3.00-4 | 75 | 25 | 6005 2RS |
| 70 | 20 | 6204 ZZ | |||
| 2.50X4 | 3.00-4 11X4.00-4 | 81 | 20 | 6204 2RS | |
| 75 | 25 | 6005 2RS | |||
| 75 | 19.1 | FLANGE BEARING | |||
| 81 | 25.4 | FLANGE BEARING | |||
| 2.65X4 | 4.10/3.50-4 | 100 | 19.1 | FLANGE BEARING | |
| 5" | 2.60X5 | 4.10/3.50-5 | 75/80/88 | 20 | 6204 2RS |
| 75 | 24 | PLASTIC BEARING | |||
| 3.00X5 | 4.10/3.50-5 | 75/80/88 | 20 | 6204 2RS | |
| 80 | 25 | 6005 2RS | |||
| 69 | 19.1 | FLANGE BEARING | |||
| 6" | 2.50X6 | 3.50-6 4.00-6 | 82 | 16 | FLANGE BEARING |
| 75 | 20 | 6204 2RS | |||
| 50 | 25 | 6005 2RS | |||
| 80 | 25 | 6205 ZZ | |||
| 80/85 | 25 | 6205 2RS | |||
| 3.25X6 | 13X5.00-6 | 80 | 19.1 | FLANGE BEARING | |
| 55/80 | 20 | 6204 2RS / 6204 ZZ | |||
| 51.5/65/80 | 25 | 6005 2RS / 6205 2RS | |||
| 3.50X6 | 13X5.00-6 | 75/90 | 20 | 6304 2RS | |
| 51/75/90 | 25 | 6205 2RS |
