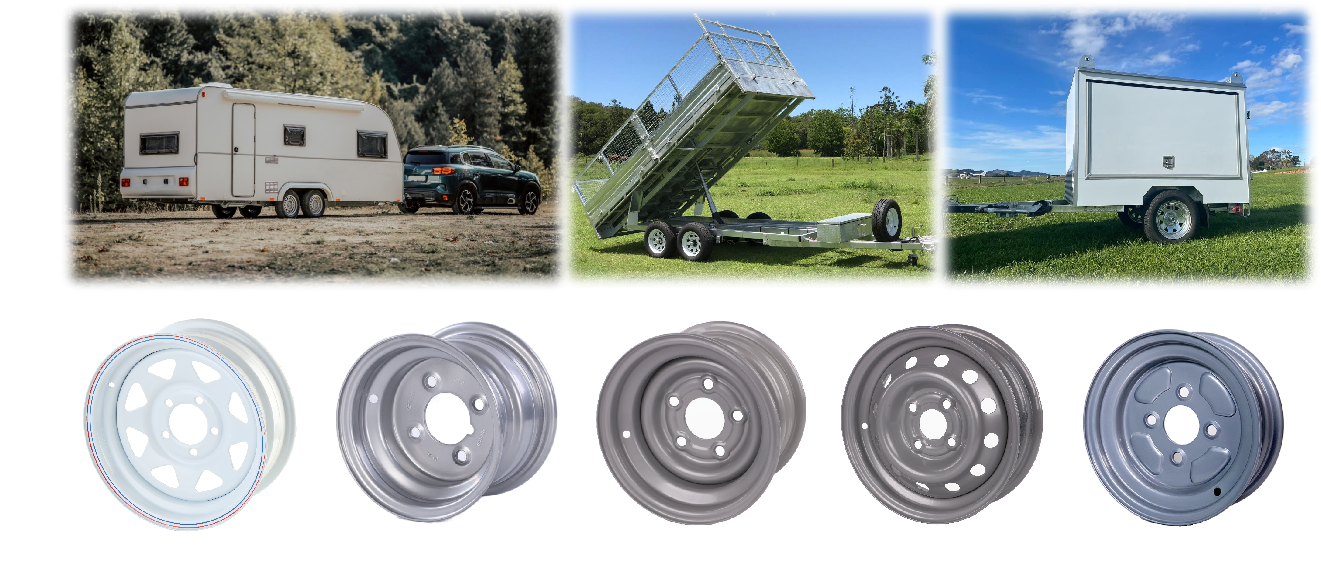

12 INCH STEEL TRAILER WHEEL - SPECIFICATIONS

• Product name: Caravan trailer wheel，European trailer wheel
• Application: Car Trailer
• Rim size:  5.50Jx12H2
• Offset:0/30
• Centre hole diameter:  94
• PCD:140
• Stud hole:  5-18.5-R14
• Wheel Nut:  M14X1.5 With spherical design R14
• Recommended tyre size:  185/60R12C  195/60R12C
• Load carrying capacity:  900KGS@140KM/H

OTHER WHEEL SPECIFICATIONS

RIM DIAMETER	WHEEL SIZE	RECOMMENDED TYRE SIZE	STUD HOLE	CENTRE HOLE DIAMETER（MM）	PCD (MM)	OFFSET(MM)	DESIGN LOAD CAPACITY
10"	3.50X10	4.50-10 5.00-10 145R10 145/80R10	4	62.5	95	0	375KGS@100KM/H
			4	58.5	98	0	375KGS@100KM/H
			4	60	100	0	375KGS@100KM/H
			4	66.7	101.6	0	375KGS@100KM/H
			4	85	115	0	375KGS@100KM/H
			4	95.25	139.7	0/-6	500KGS@100KM/H
	6.00X10	195/55R10C 20.5X8.0-10	4	58.5	98	0/-4	750KGS@140KM/H
			4	60	100	0/-4	750KGS@140KM/H
			4	66.7	101.6	0/-4	750KGS@140KM/H
			5	66.5	112	0/-4/25	750KGS@140KM/H
			4	85	130	0/-4	750KGS@140KM/H
			5	94	140	0/-4	750KGS@140KM/H
12"	4.00JX12	155/70R12	4	65	101.6	0	500KGS@140KM/H
			4	72	101.6	0	500KGS@140KM/H
	4.50JX12	155/70R12C	4	58.5	98	30	900KGS@140KM/H
			5	66.5	112	0/20/30	900KGS@140KM/H
			4	85	130	0	650KGS@140KM/H
			5	94	140	0/30	900KGS@140KM/H
			5	115	165.1	0	900KGS@140KM/H
	5.50JX12	185/60R12C 195/60R12C	5	66.5	112	5/30	900KGS@140KM/H
			5	94	140	0/30	900KGS@140KM/H
			5	115	165.1	0	900KGS@140KM/H
	6.00JX12	195/60R12C	5	66.5	112	30	900KGS@140KM/H
			5	115	165.1	0	900KGS@140KM/H
	7.00X12	225/55R12C	5	67	112	10	1120KGS@140KM/H
